[ PLATIT ] Pi511 high volum PVD coating unit
페이지 정보
본문

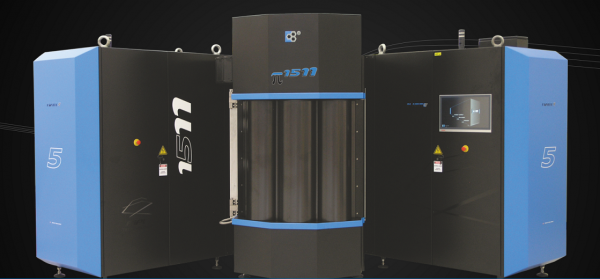

The Pi1511 is a high-volume PVD coating unit. It combines three rotating PLATIT LARC® XL cathodes positioned inside the door with two Planar ARC cathodes in the back of the chamber. The combination of round cathodes with high-performing Planar cathodes allows for the deposition of PLATIT Signature Coatings with familiar flexibility. The LARC® XL cathodes have a very long lifespan and thus guarantee high productivity at a low cost per tool.
Technologies applied:
- 3 x LARC® XL (LAteral Rotating XL Cathode) inside the door and
2 x Planar cathode with ARC technology in the back - MAC-3C (Magnetic ARC Confinement – Coil Current Compensation) for automated magnetic field adjustment
- Quick cathode exchange
- Deposition of PLATIT Signature Coatings
Etching technologies applied:
- LGD® (Lateral Glow Discharge)
- Plasma etching with argon, glow discharge
- Metal ion etching (Ti, Cr)
Load and cycle times:
- Max. coating volume [mm]: ø715 x H805
- Max. coating height with defined coating thickness: 711mm
- Max. load: 400kg
- 3 batches/day
Modular carousel systems:
- 1 to 12 axes
Software:
- Simple use and maintenance
- PLATIT’s SmartSoftware (PC and PLC system)
- Modern control system with touch screen
- Statistics and help function via user interface
- Data recording and real-time display of process parameters and flow
- Manual and automatic process control
- Remote diagnostics and maintenance
관련링크
-
https://youtu.be/ezVmjQ4CngI
